Ford Tractor Parts from 1939 to the last one that rolled off the assembly line.
The first Ford tractor was the 9N, the first tractor to have both three-point hitch and a rear
Power Take Off. The 9N was first demonstrated in
Dearborn,
Michigan on June 29, 1939. Like the
Farmall, it was designed to be a general-purpose row-crop tractor for use on smaller
farms. An extremely simple, almost crude tractor, the 9N was fitted with the Ferguson system three-point hitch, a three-speed transmission, and featured foot pegs instead of running boards. Ford Tractor Parts. The 9N's relatively tall and wide-spaced front wheel design resulted in somewhat sluggish steering and reduced maneuverability compared to competing machines such as
John Deere's Models A and B, and the
Farmall 'Letter series'. Uniquely, the exhaust was routed underneath the tractor, much like an automobile. All 9N tractors were painted dark grey. This tractor has a rear Power Take Off (PTO) which could be used to drive three point or towed implements. The Ferguson hitch was designed to solve some of the problems found in the earlier
Fordson tractors such as flipping over if the
plow hit an obstruction.
The 9N was revised a number of times, until being re-launched as the 2N in late 1941. The 2N still came in dark grey, but now had added improvements including a larger cooling
fan and a pressurized
radiator. However, the 2N, like the 9N, still had only a 3-speed transmission, a disadvantage compared to the
Farmall A and M. By this time, wartime regulations had imposed manufacturing economies, and some 2Ns can be seen with all-steel wheels and a lack of sleeved engines. Ford Tractor Parts.
Batteries were reserved for the war effort, so the all-steel wheel tractors came with a
magneto
ignition system instead of a battery. After the war the steel wheels and magneto system were replaced with
rubber and batteries. All of the 9N and 2N models featured a front-mounted distributor, which proved difficult to service. It is hard to tell the difference between the 9N and the 2N .

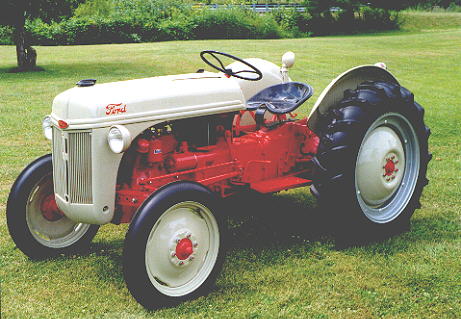

Official production of the 8N tractor began in 1947. Equipped with a 4-speed transmission, this model was destined to become the top-selling individual tractor of all time in North America. The most noticeable differences between the 8N and its predecessors was the inclusion of a 4-speed transmission instead of a 3-speed in the 9N and 2N, and an increase in both PTO and drawbar horsepower. The other big change on the 8N was the addition of a 'Position-control' setting for the hydraulics. This change was made partially to improve flexibility in varying soil conditions, and partially to evade Harry Ferguson's patent on the hydraulic system, since Ferguson's production agreement with Ford had been terminated at the end of the war. Ford Tractor Parts The original automatic draft control on the Ferguson system would allow the depth of the implement to vary based on soil conditions, which did not work well for some implements. The new Position Control setting bypassed the draft control and allowed the implement to remain at a consistent position relative to the position of the Touch Control lever. A continued drawback to this series of tractor, was the safety need for an overrunning clutch at the end of the PTO shaft. This was addressed with the advent of the PTO overrunning coupler.
The 8N was equipped with running boards and was painted gray on the sheet metal and red on the body. It was the first Ford tractor to feature a clutch on the left side and independent brakes on the right. Ford Tractor Parts The wide-spaced front wheel design of the 9N and 2N was retained. In 1950 the 8N design changed to feature a side-mounted distributor, as well a Proof meter (combined speedometer, tacometer, hour meter) located on the lower right portion of the dash.

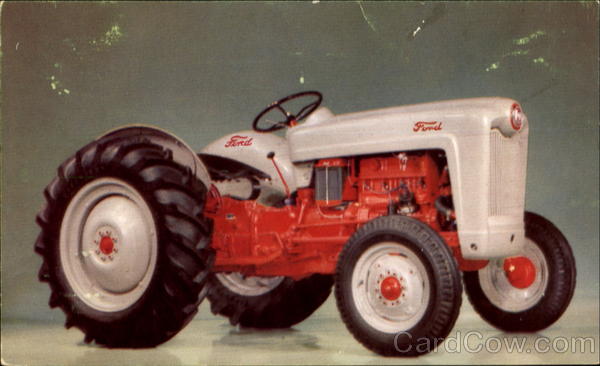

In 1953 Ford introduced an overhead valve engine in a model dubbed the Golden Jubilee, also known as the Ford NAA. Larger than the 8N, the Golden Jubilee featured live hydraulics. Ford Tractor Parts.
We want to help you find your parts! If you have questions please call our parts Helpline.
Are you looking for Ford Tractor Parts Online? Then you have found the right Website.
Alma Tractor Parts Department is a full line parts Dealer.
We stock a large inventory of parts, from the old 9N, 2N, and 8N Tractors to the very last Ford Tractor that rolled off the production line. We stock many of the filters and maintenance parts to help keep your Ford Tractor performing at peak efficiency. We also stock Starters, Alternators, Steering Parts, Decals, Hydraulic Parts, Etc… for your Ford Tractor.
We can ship parts to you, Priority Overnight, 2nd Day Air, or Ground, whichever fits your needs.
We are supported by several large warehouses for those
harder to find parts.
We have 2 easy ways for you to order your parts.
You can Order Online by clicking one of the links above to go to our
Online Parts Store.
Having problems finding the right parts?
Give us a call on our parts Helpline at: 1-866-441-8193 and let one of
our Experienced and Friendly Parts Techs help you with your order.
We want to help you succeed in finding your
parts
!
We want to help you find your
parts! If you have questions please call our parts Helpline.
Dear Valued Customer,
Our Experienced and Friendly Parts Sales Staff at Alma Tractor will go above and beyond to help you keep your equipment up and running.
Every one of our Parts Staff members have over 10 years of experience in the parts business and we have over 100 years of combined experience in helping customers find their parts, no matter what brand it is.
Let us help you make your parts buying experience easier.
Even the most dependable equipment needs a new part now and then. Alma Tractor maintains an extensive inventory of Ford Agriculture parts, so you'll have the parts you need as quickly as possible.
Our convenient live helpline is staffed with experienced friendly parts technicians to help you select the correct part for your equipment. All you need is the model number and serial number of your machine to get the correct parts you need for your Ford Agriculture equipment.
Sincerely,
Alma Tractor & Equipment Parts Team
Official
Webpage for
Ford Tractor
Parts
.
Ford Tractor Parts Online Parts Store
We want to help you find your parts! If you have questions please call our parts Helpline.
When you are ordering
parts it is
sometimes necessary to locate the date code, serial number, or ordering
code of your tractor to help find the exact
parts you need.

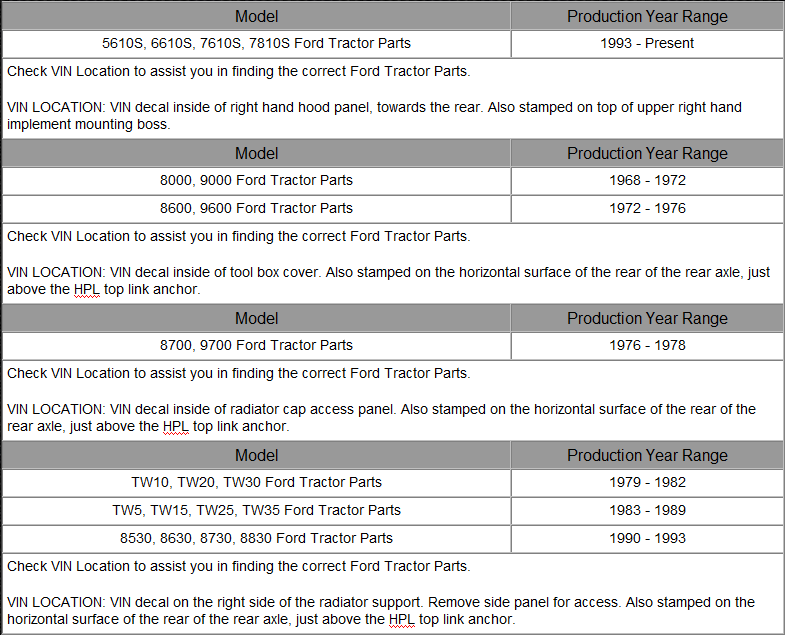

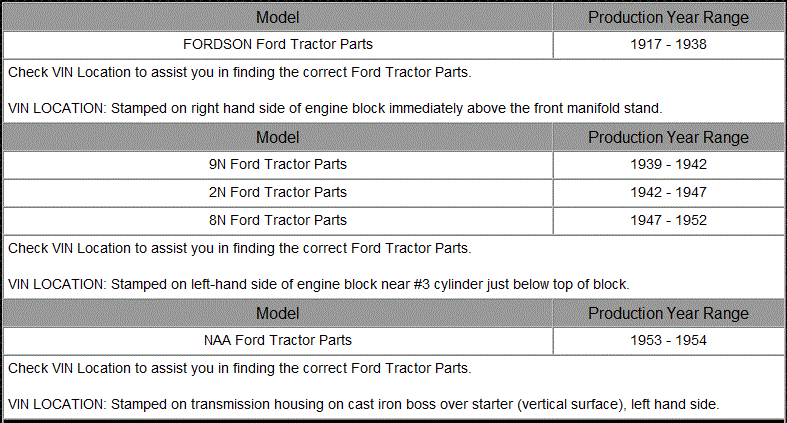

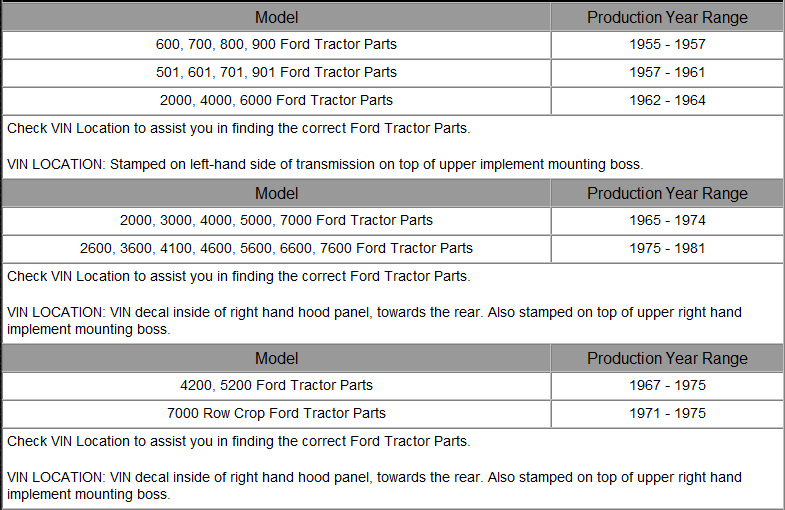

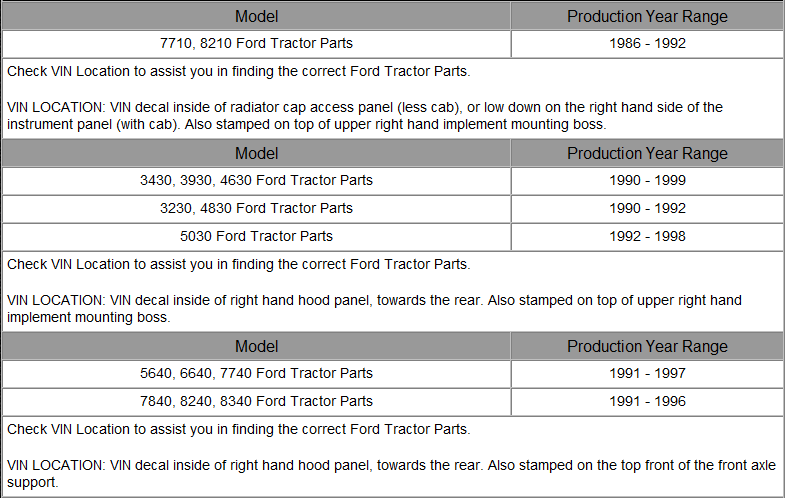

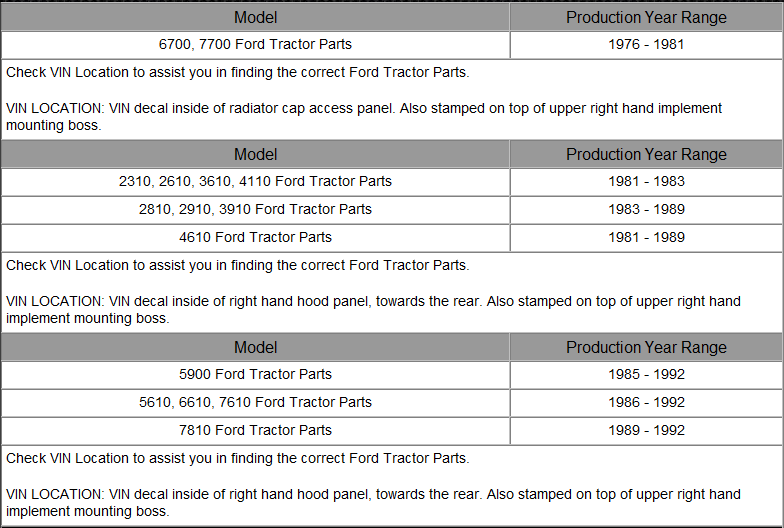

Below is a chart showing the location of those numbers to help you find the correct
parts.
We want to help you find your parts! If you have questions please call our parts Helpline.
Ford Tractor Parts Online Parts Store
Once you have found the numbers you need then here is how to tell which number is your date code to help you find the correct Ford Tractor Parts.
The Date Code for your tractor has 5 digits, and usually starts with one Number, a Letter, two Numbers and a Letter.
Here is an example: 0L13B
0 = Year of manufacture Ford Tractors were only made for 10 years at a time, so once you know what years your tractor was made then you know by this first digit what year it is.
L = Month of the Year the Tractor was made, in this case November. Always remember to skip the letter I.
13 = Day of the Month the tractor was made.
B = Shift it was made on. A = Early Shift B = Evening
Shift C = Graveyard Shift
The Other 2 numbers usually located in the same place
are the Ordering Code, and the Serial Number.
Sometimes these other 2 numbers may be needed to help you find the correct Ford Tractor Parts you need.
The ordering Code will be 6 digits for example: CA614C
This number can help you figure
out what Series your tractor is, what type chassis it is, Fuel Type, PTO Type,
and what Transmission was originally in the tractor.
The Serial number will obviously show where your tractor
fit into the build sequence the day it was made.
As Always if you need help finding the right parts Please Call our parts Helpline and one of our Friendly and Experienced Parts Techs will be glad to help you.
